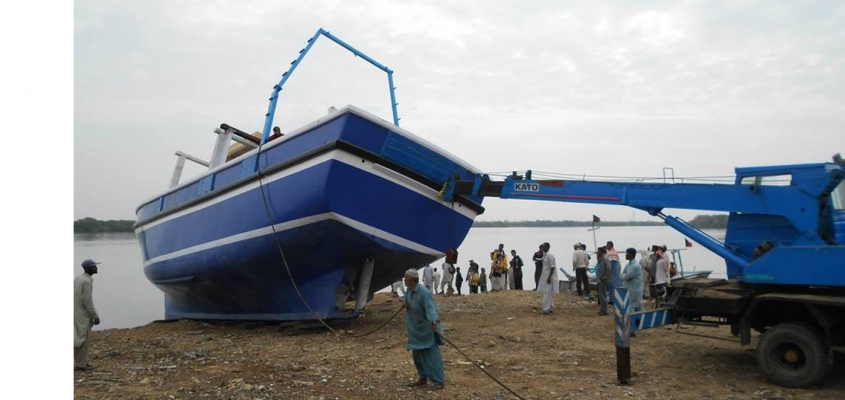

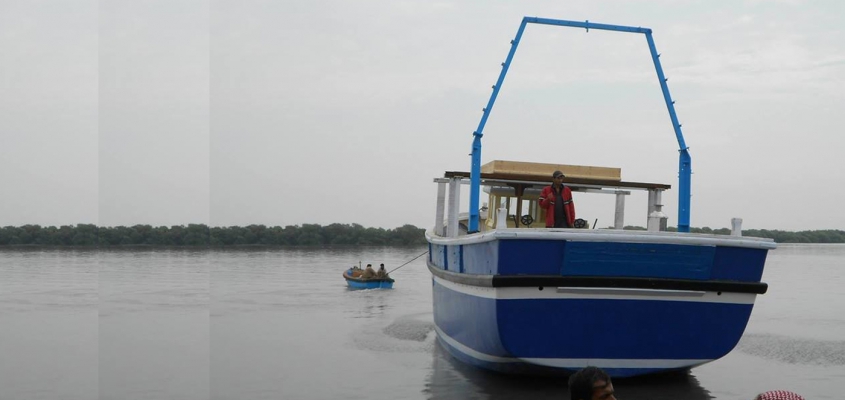

Essa boats builder manufacture fishing trawler in the city of lights(Karachi), Pakistan. This is the biggest GRP craft of the country, the first fishing trawler hull has just been removed from the mould. It is a matter of pride for Essa and Sons to have ventured into a composite vessel where longitudinal stresses come into play and transverse stiffening is no longer applicable. The 175m3 fish holds capacity permits it to stay out at sea for long periods. The twin heavily insulated holds insure freshness of catch. It may be noted that refrigeration or RSW systems can be installed. Options are available for
- Bottom Trawling
- Gill Netting
- Purse seine
- Long line
- Mother ship
- Cargo version
In consonance with the type of application, the deck hardware can be installed the customers requirement sufficient space is available on deck for winches, derricks, davits, spreads, ice makers and ancillary equipment. Provision can be made for hoisting and lowering of catch in the holds. The storage can be adapted for fish crates or racks, with provisions for quick icing and rapid unloading of catch.
Powering is according to customer’s needs, it can be from 400-1200HP single or twin engine. Separate generators, compressors or auxiliary equipment can be installed on request.
The vessel is also available in 70 ft. version.
Specifications:
- Power: Dual CAT C12 Diesel Engines
- Length Overall: 21.35m and 22.86m
- Keel Length: 13.72m
- Beam: 7.61m
- Depth: 4.88m
- Fish Holds: 2
- Engine: Inboard single or twin
- Fuel: To suit
- Water: To suit
- Boat Speed: 20 -24 knots
Fishing Trawler 2
This is a premium model and one of the best sellers. Haji Essa put his lifetime experience and savings on this craft. Hitherto fiber glass was taboo in this country; “Plastic boats will break at sea” was the opinion of conservative fishermen. The wooden trawlers in spite of all shortcomings had certain characteristics specific to our environment. A GRP vessel does not prefer congested harbors, a condition which needed to be catered for by providing additional strength in frames and beams, this can only be done with years of experience. After the first boat the mould has never been idle in the past four years. Over a score of such vessels have made their name in, economy, reliability, sea keeping, low maintenance, speed, strength water tightness, hygienic conditions, ease of cleaning and excellent insulation of fish holds. The popularity is such that often customers are declined due to heavy booking.
The craft can be used in many versions viz: Bottom trawler, gill netter, long liner. With a 100m3 fish hold and 4″ thick PU foam insulation the catch comes home fresh.
Powering is according to customer’s needs, it can be from 200-1000HP single or twin engine. Separate generators, compressors or auxiliary equipment can be installed on request.
It will be admitted that the craft are heavily overdesigned in strength as the craft need to withstand the crowding at jetties and need to force their way out.
As the popularity increases different fishing methods are requested. Often the layout is tailor made to user demands. Wheel house forward, amidships and aft, net hauling spreaders aft, fish hold interior layout change, relocation of mast, relocation of winch are a few to mention.
We have received international inquiries and are preparing to further improve quality. Recently an air conditioned workshop has been commissioned. Consistent raw material quality is now ensured through fixed suppliers.
- Power: Dual CAT C12 Diesel Engine
- Length Overall: 21.35m and 22.86m
- Keel Length: 13.72m
- Beam: 7.61m
- Depth: 4.88m
- Fish Holds:
- Engine:
- Fuel:
- Water: To suit
- Boat Speed: 20 -24 knots
